Vibra Screw’s Heavy Duty Metering Conveyors provide reliable and economical feeding of materials that do not require a vibrating design.

When combined with vibratory pre-feed equipment such as Bin Activators or Vibrated Bins, the Metering Conveyor will deliver accuracies of plus or minus 2%. Rates up to 9800 cubic feet per hour are available.

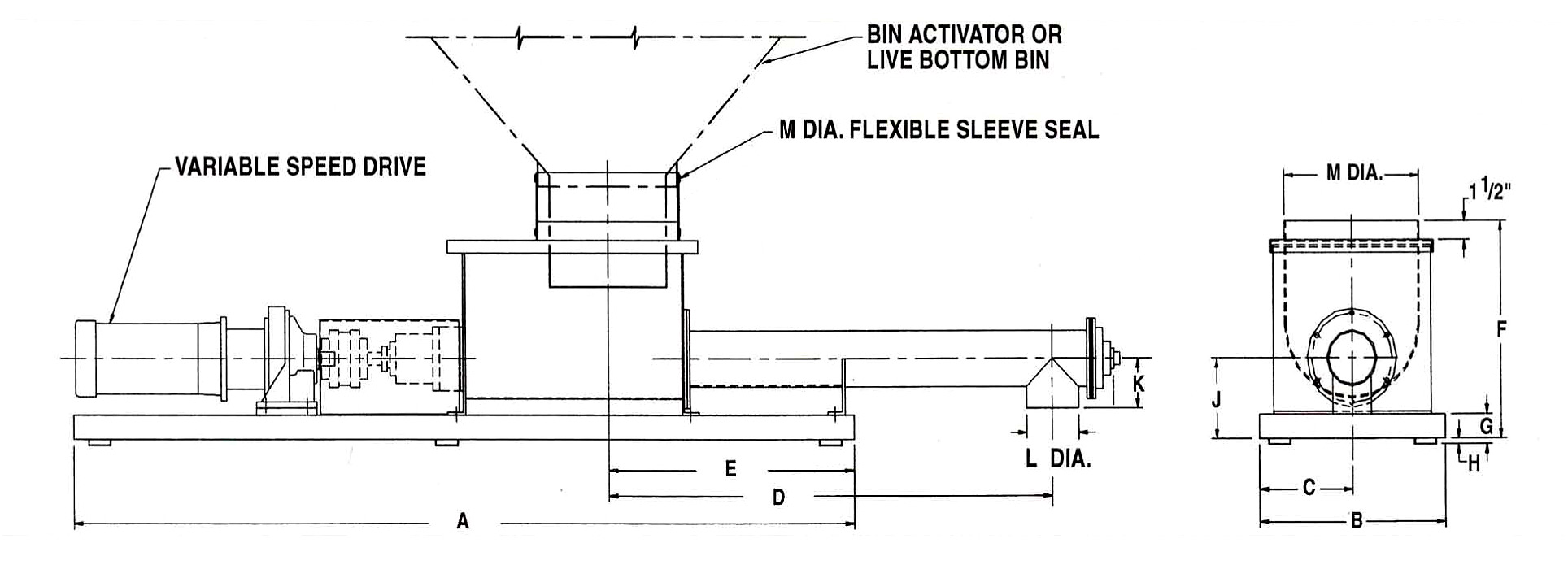

SPECIFICATIONS

Click to View Larger
(mm)
Size	A	B	C	D	E	F	G	H	J	K	L	M	N	Max HP	CU FT (CU M) Hr.
4 (102)	61 (1549)	16 1/2 (419)	8 1/4 (210)	26 (660)	17 (432)	17 7/8 (454)	2 3/8 (60)	3/8 (10)	7 (178)	4 (102)	4 1/2 (114)	12 (305)	5 1/8 (130)	3/4	200 (516)
6 (152)	68 (1727)	18 1/2 (470)	9 1/4 (235)	34 (864)	24 (610)	18 1/8 (460)	3 3/8 (86)	3/8 (10)	8 3/8 (213)	5 3/8 (137)	7 (178)	14 (356)	6 3/8 (162)	1	600 (16.8)
8 (203)	90 (2286)	18 1/2 (470)	9 1/4 (235)	43 (1092)	32 (813)	21 (533)	4 (102)	1 (25)	9 3/4 (248)	6 5/8 (168)	9 (229)	14 (356)	7 3/8 (187)	1 1/2	1200 (33.6)
10 (254)	103 (2616)	20 1/2 (521)	10 1/4 (260)	54 (1372)	42 (1067)	25 1/4 (641)	4 (102)	1 (25)	11 (279)	8 3/8 (213)	11 (279)	16 (406)	8 3/4 (222)	2	2400 (67.2)
12 (305)	110 (2794)	22 1/2 (572)	11 1/4 (286)	66 (1676)	50 (1270)	25 5/8 (651)	4 (102)	1 (25)	12 (305)	9 (229)	13 (330)	18 (457)	9 7/8 (251)	2	4140 (115.9)
14 (356)	110 (2794)	26 1/2 (673)	13 1/4 (337)	72 (1829)	46 (1168)	26 5/8 (676)	4 (102)	1 (25)	13 (330)	10 (254)	15 (381)	22 (559)	11 1/4 (286)	3	6560 (183.6)
16 (406)	118 (2997)	30 1/2 (775)	15 1/4 (387)	84 (2134)	48 (1219)	27 5/8 (702)	4 (102)	1 (25)	14 (356)	11 (279)	17 (432)	26 (660)	12 1/2 (318)	5	9800 (274.4)
