 The Vibra Screw Live Bottom Bin is a self-contained, preassembled, ready-to-operate unit combining a static cylindrical bin and a vibrated Bin Activator in capacities to 750 cu ft. The Live Bottom Bin is designed to provide positive discharge of a wide variety of materials from storage into process, on a first-in, first-out basis. Vibra Screw Live Bottom Bins eliminate bridging and condition materials to constant bulk density for more consistent downstream feeding.
Vibra Screw Live Bottom Bins can be hung from overhead steel or can be supplied with legs. Live Bottom Bins may be used to discharge to any feeder or process line or wherever a surge or storage bin is required. Live Bottom Bins are also extremely useful as batching or portable bins or as weigh bins.

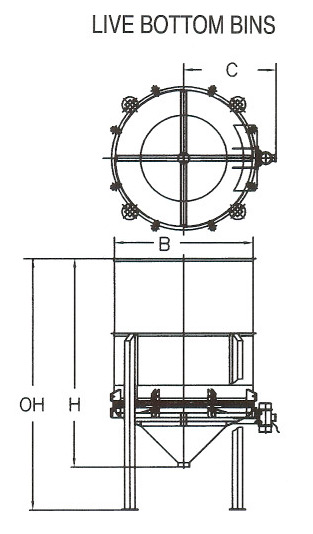

| SPECIFICATIONS |
| Model CU. FT. (M) |
| (mm) |

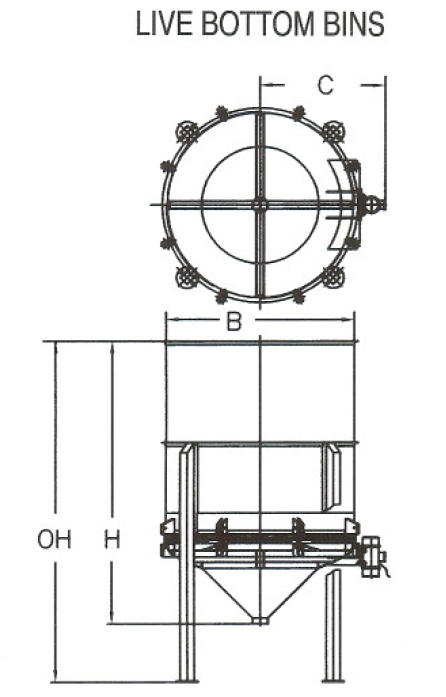

 Click to View Larger |
| H |
OH |
B |
C |
| LBB 20-3 3 (0.08) |
22 1/2" (572) |
41 1/2" (1054) |
20" (508) |
21" (533) |
| LBB 20-5 5 (.14) |
35" (889) |
54" (1372) |
20" (508) |
21" (533) |
| LBB 28-10 10 (.28) |
33" (838) |
52" (1321) |
28" (711) |
29" (737) |
| LBB 3-25 25 (.71) |
55 1/2" (1410) |
77 1/2" (1968) |
36" (914) |
33 1/2" (851) |
| LBB 3-50 50 (1.42) |
91 1/2" (2324) |
113 1/2" (2883) |
36" (914) |
33 1/2" (851) |
| LBB 4-100 100 (2.83) |
111 1/4" (2826) |
133 1/4" (3385) |
48" (1219) |
39 1/2" (1003) |
| LBB 5-200 200 (5.66) |
144 1/8" (3661) |
166 1/8" (4220) |
60" (1524) |
45 1/2" (1156) |
| LBB 6-300 300 (8.5) |
151 1/2" (3848) |
181 1/2" (4610) |
72" (1829) |
54 1/2" (1384) |
| LBB 8-500 500 (14.2) |
145 1/4" (3689) |
175 1/4" (4451) |
96" (2438) |
67" (1702) |
| LBB 8-750 750 (21.24) |
208 1/4" (5290) |
238 1/4" (6052) |
96" (2438) |
67" (1702) |
| |
|
| SCHEMATICS Find the schematic you wish to download and choose which format you prefer. PDF or DWG. |
| Live Bottom Bins |
| 17950E-SD |
3 - 25 to 50 LIve Bottom Bin, cfs, w/greased vibrator |
PDF |
DWG |
| 17950D-SD |
4 - 50 to 100 Live Bottom Bin, cfs, w/greased vibrator |
PDF |
DWG |
| 17950-SD |
5 - 100 to 200 LIve Bottom Bin, cfs, w/greased vibrator |
PDF |
DWG |
| 17950C-SD |
6 - 200 to 300 LIve Bottom Bin, cfs, w/greased vibrator |
PDF |
DWG |
| 17994-SD |
7 - 300 to 400 LIve Bottom Bin w/greased vibrator |
PDF |
DWG |
| 17995-SD |
8 - 400 to 750 LIve Bottom Bin w/greased vibrator |
PDF |
DWG |
| 17988-SD |
3 - 25 to 50 LIve Bottom Bin, cfs, w/ 1 1/2K gyrator |
PDF |
DWG |
| 17989-SD |
4 - 50 to 100 LIve Bottom Bin, cfs, w/ 3K gyrator |
PDF |
DWG |
| 17990-SD |
5 - 100 to 200 LIve Bottom Bin, cfs, w/ 3K gyrator |
PDF |
DWG |
| 17991-SD |
6 - 200 to 300 LIve Bottom Bin, cfs, w/ 6K gyrator |
PDF |
DWG |
| 17992-SD |
7 - 300 to 400 LIve Bottom Bin, cfs, w/ 6K gyrator |
PDF |
DWG |
| 17993-SD |
8 - 400 to 750 LIve Bottom Bin and 6K gyrator |
PDF |
DWG |
| |
|
| CASE HISTORIES |
Live Bottom Bins
C-155 Wood Chips, LBB
C-162 Boric Acid, LBB,LBF
C-165 Coal, LBF,LBB
C-167 Molding Sand, LBB
C-170 Flour, LBB
C-183 Iron, LB,LBB,HD-2
|
C-186 Iron,Ochre, LBB,LBF
C-191 Iron Oxicde, LBB,LBF
C-197 Urea, LBB,HD-2
C-202 Oriskany Sand, LBB
C-207 Hydrated Lime, LBB,7-24
C-208 Centrifuge Cake, LBB
|
C-211 Peat Moss, LBB
C-216 Salt, LBB
C-222 Plaster, BA,LBB,VM
C-224 Various, LBB,BF,VB
C-231 Dolomite,LBB,HD-2
C-232 Salt,LBB
|
C-233 Toner, LBF,LBB
C-240 SoyFlake, LBB,LBF
C-243 Cake Mix, LBB
C-246 Coal,Limestone,BA,LBB
C-259 Chrome Ore, LBB,VM
C-268 Various, BBU,VSF,LBB
|
| |
|
|
|
|
