Spiral Elevating Conveyors lift materials vertically up to 20 ft within a very small area. Material is conveyed solely through the action of twin externally mounted vibrators. There are no internal moving parts to degrade material. Spiral Elevating Conveyors are also useful in material cooling applications due to their long conveying path.

SPECIFICATIONS

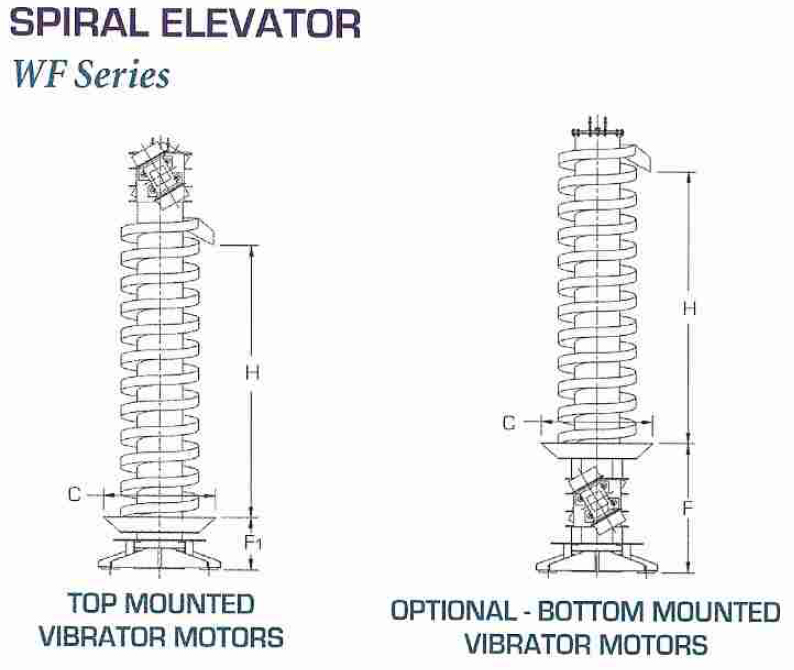

Model No.	Throughput Rate (Cu.FT./HR.)	F₁	F	H	C	Click to View Larger
WF 1000/340-U4X	67	13"	22"	40"	21"
WF 5000/340-U11X	67	13"	22"	197"	21"
WF 1500/560-U10X	141	15"	30"	60"	32"
WF 5000/560-U11X	141	15"	35"	197"	32"
WF 2000/680-U16W	247	15"	35"	79"	38"
WF 6000/68-U18W	282	15"	38"	237"	38"
WF 2000/900-U35W	459	13"	22"	40"	21"
WF7000/900-U53W	388	18"	45"	276"	44"

Standard Features:
Vertical Sized:	40 Inch - 276 Inch Tray Height (1016mm - 7010 mm Tray Height)
Materials of Construction:	Contact surfaces available in Carbon Steel or 304 Stainless steel. Non-Contact carbon steel surfaces sandblasted and painted.
Drive Motors:	(2) TENV 230-460/3/60. Ranging from 3/4 HP to 8 HP.
Applications:	Verticle conveying, cooling, batching.
