HOME > VIBRATING CONVEYORS

Vibra Screw’s line of Vibrating Conveyors offers a simple and efficient means to meter and convey your dry bulk material. These open or enclosed units will handle nearly any material, regardless of size and bulk density in a reliable and economical manner. The key to the line’s success is its low cost, simplicity and efficiency. There are no augers, bearings or seals which can degrade material, leak or require maintenance. Two highly efficient, externally mounted vibrators provide quiet, linear motion to smoothly move your product into process. Vibra Screw Vibrating Conveyors make an excellent alternative to screw and belt feeders and conveyors.

SPECIFICATIONS

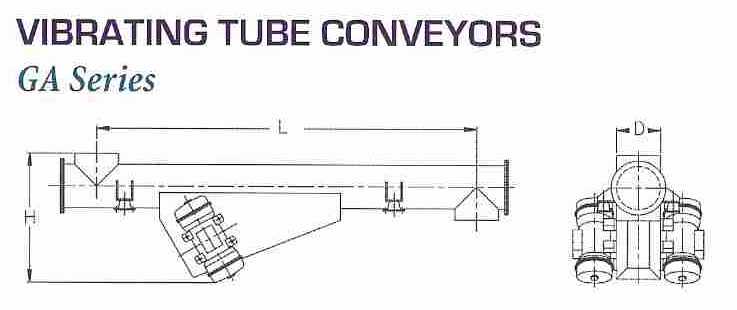

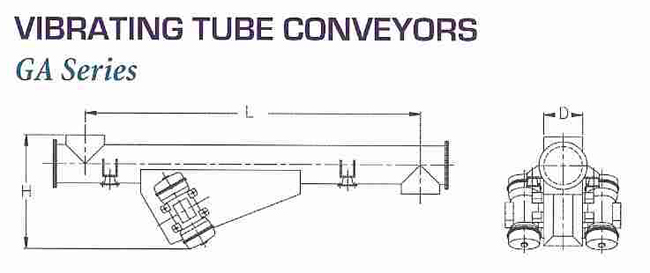

Enclosed Tube Model Capacity CFH Dim. Inches
DxLxH

Click to View Larger
GA1422/160U4X 120 6 x 50 x 19
GA2235/200U4X 475 8 x 80 x 23
GA6350/260U16X 850 10 x 240 x 36
GA6400/320U25X 1695 12x240x46
GA6452/360U25X 1995 14 x 240 x 48
GA6502/400U25X 2295 16 x 240 x 52

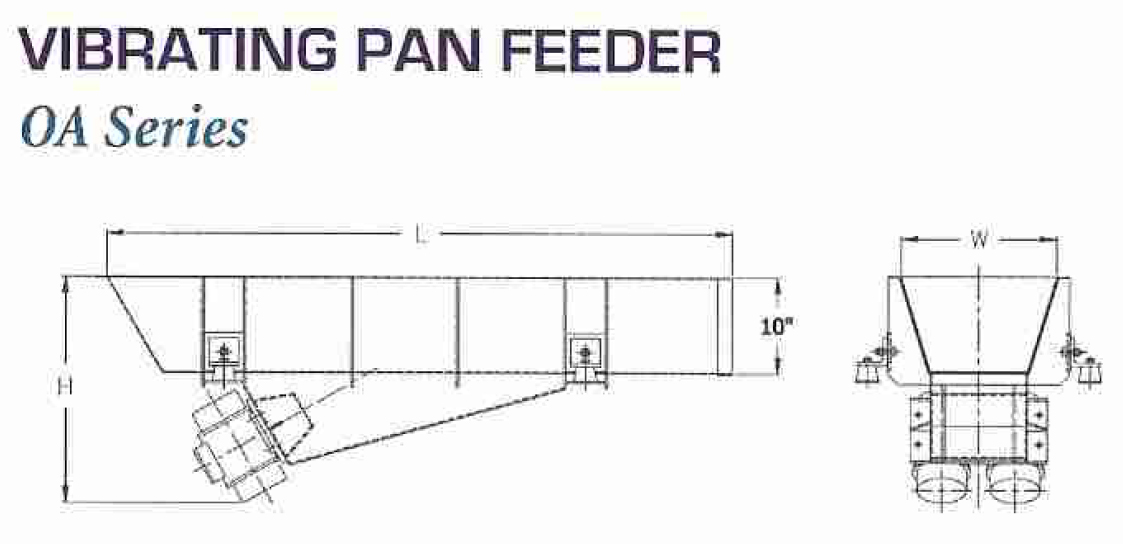

Open Trough Model Capacity CFH Dim.Inches
LxWxH

Click to View Larger
OA500/300U1Y 670 20 x 12 x 16
OA1000/500U2Y 1095 40 x 20 x 18
OA1250 / 90U4X 3213 49 x 35 x 26
OA1500/900-U6X 4237 59 x 35 x 29
OA1750/900U6X 3708 68 x 35 x 30
OA2000/900U6X 3107 80 x 35 x 30
OA2500/900U6X 2366 98 x 35 x 30
OA3000/900U10X 3390 117 x 35 x 33
OA4000/1600U35W 10240 156 x 62 x 43
OA5000/1600U53W 11299 195 x 156 x 47
OA60001/600U71W 12359 234 x 156 x 49



SCHEMATICS      Find the schematic you wish to download and choose which format you prefer. PDF or DWG.
Tube/Pan/Screen Feeder
S142 Vibrating Tube Feeder PDF
S143 Vibrating Pan Feeder PDF
18073 Screener (Open Trough Models) Rev. 1 PDF DWG
18073A Screener Trough with Cover Rev. 1 PDF DWG



EQUIPMENT TEST VIDEO


Vibrating Tube Feeder / Live Bottom Bin (Bin Activator) Dolomitic Lime (Dolime) Test




2% Moisture added to Dolomitic Limestone. Live Bottom Bin / Tube Feeder Test 2


CASE HISTORIES
Pan Feeder
C-237 Seed, PF
C-238 Solvents, PF
