Vibra Screw’s Heavy Duty Metering Conveyors provide reliable and economical feeding of materials that do not require a vibrating design.
When combined with vibratory pre-feed equipment such as Bin Activators or Vibrated Bins, the Metering Conveyor will deliver accuracies of plus or minus 2%. Rates up to 9800 cubic feet per hour are available.
![\"btnBrochure\"](\"https://www.vibrascrew.com/wp-content/uploads/btnBrochure.png\")
![\"btnRequestAQuote\"](\"/wp-content/uploads/btnRequestAQuote.jpg\")
![\"btnRequestLiterature\"](\"/wp-content/uploads/btnRequestLiterature.jpg\")

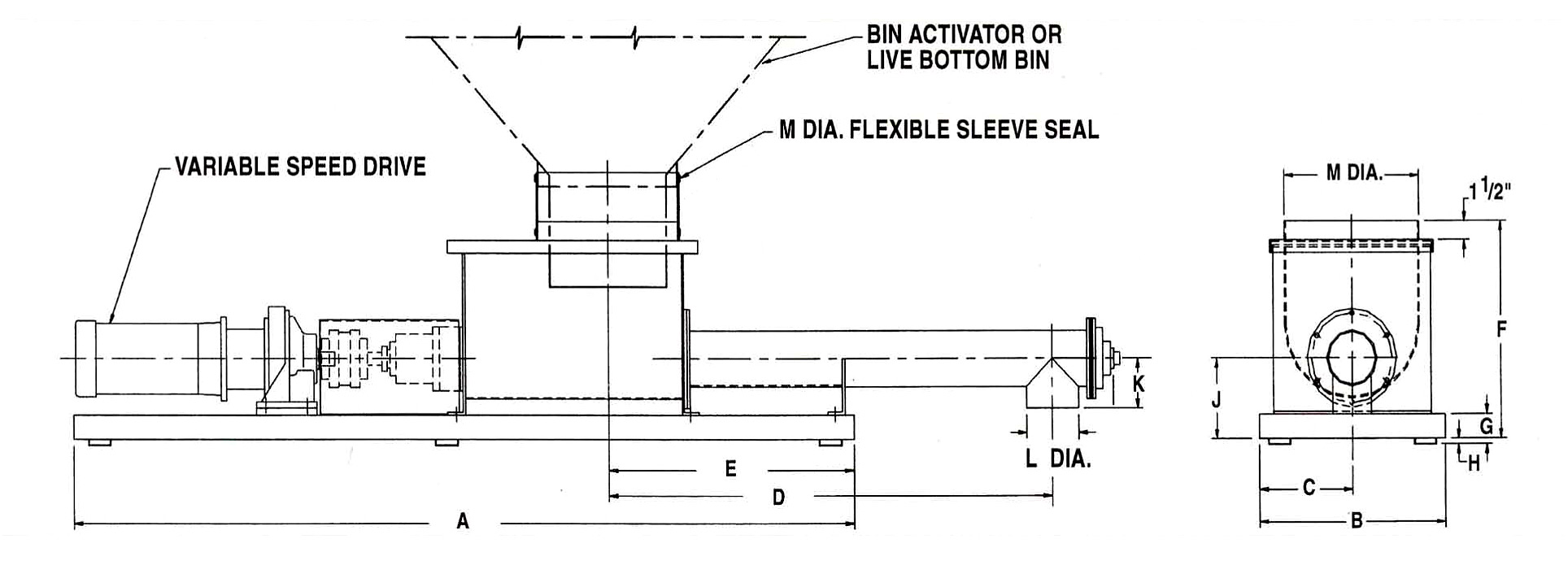

Specifications
| (mm) | |||||||||||||||
| Size | A | B | C | D | E | F | G | H | J | K | L | M | N | Max HP | CU FT (CU M) Hr. |
| 4 (102) | 61 (1549) | 16 1/2 (419) | 8 1/4 (210) | 26 (660) | 17 (432) | 17 7/8 (454) | 2 3/8 (60) | 3/8 (10) | 7 (178) | 4 (102) | 4 1/2 (114) | 12 (305) | 5 1/8 (130) | 3/4 | 200 (516) |
| 6 (152) | 68 (1727) | 18 1/2 (470) | 9 1/4 (235) | 34 (864) | 24 (610) | 18 1/8 (460) | 3 3/8 (86) | 3/8 (10) | 8 3/8 (213) | 5 3/8 (137) | 7 (178) | 14 (356) | 6 3/8 (162) | 1 | 600 (16.8) |
| 8 (203) | 90 (2286) | 18 1/2 (470) | 9 1/4 (235) | 43 (1092) | 32 (813) | 21 (533) | 4 (102) | 1 (25) | 9 3/4 (248) | 6 5/8 (168) | 9 (229) | 14 (356) | 7 3/8 (187) | 1 1/2 | 1200 (33.6) |
| 10 (254) | 103 (2616) | 20 1/2 (521) | 10 1/4 (260) | 54 (1372) | 42 (1067) | 25 1/4 (641) | 4 (102) | 1 (25) | 11 (279) | 8 3/8 (213) | 11 (279) | 16 (406) | 8 3/4 (222) | 2 | 2400 (67.2) |
| 12 (305) | 110 (2794) | 22 1/2 (572) | 11 1/4 (286) | 66 (1676) | 50 (1270) | 25 5/8 (651) | 4 (102) | 1 (25) | 12 (305) | 9 (229) | 13 (330) | 18 (457) | 9 7/8 (251) | 2 | 4140 (115.9) |
| 14 (356) | 110 (2794) | 26 1/2 (673) | 13 1/4 (337) | 72 (1829) | 46 (1168) | 26 5/8 (676) | 4 (102) | 1 (25) | 13 (330) | 10 (254) | 15 (381) | 22 (559) | 11 1/4 (286) | 3 | 6560 (183.6) |
| 16 (406) | 118 (2997) | 30 1/2 (775) | 15 1/4 (387) | 84 (2134) | 48 (1219) | 27 5/8 (702) | 4 (102) | 1 (25) | 14 (356) | 11 (279) | 17 (432) | 26 (660) | 12 1/2 (318) | 5 | 9800 (274.4) |
